Using browser hooks gives the ability to launch custom GAB script(s) right off of the browser by the click of a button. For example, if a user wants a new customer to be created on the fly, a GAB script can be created and tied to the customer browser, allowing a button to be clicked to create a new customer from the browser. The hook will be associated directly to the browser based on the browser mode, calling program, and switch(s) if applicable. If desired, the hook can be launched any time the browser mode is used in the system (for example, any time the Customer browser is launched). The browser buttons are company code specific. Any user who has access to the browser will be able to see the custom GAB buttons. If additional security is needed to restrict users from seeing the button(s), the security logic must be applied within the GAB script itself.

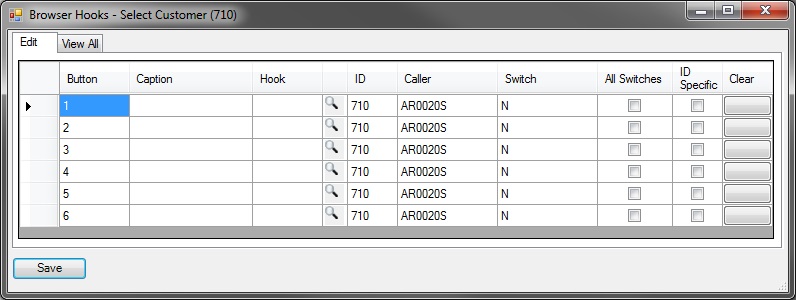

Clicking the Browser Hooks button opens this screen:

Edit tab

Button. The button number is assigned by the system, 1-6. Buttons 1-6 will be displayed left to right on the .NET browser

Caption. Enter a caption/label for the button. The caption is what will appear on the button when launching the browser.

Hook. Open the Hook browser for a listing of all user-defined hooks set up through System Support > Administration > GAB Script Hook Maintenance. Attach the custom script to be used when clicking the button.

ID. The ID is the system-assigned number for the Browser type. In the example above, ID- 710 represents the Customer browser.

Caller/Switch. The Caller is the program from which the browser was launched and the Switch represents the mode of the caller program in which the browser was launched. Typically, the Switch will be one of the following: N - New mode, O - Open mode, V - View mode and D - Delete mode . In the example above, the customer browser was launched from caller program AR0020S in New mode. Specifically, the browser was launched by going to Order Entry > File > Sales Orders > New and opening the Customer browser.

All Switches. This box should be checked if the button should be accessible from all Switches associated with the Caller program. If this box is unchecked, the button will only be accessible if the Caller program with the Switch listed on the screen is called. Note: If the ID Specific box is checked, it will override this option.

ID Specific. This box should be checked if the button should be accessible any time the particular Browser ID is launched. In the example above, if the box is checked, any time the Customer browser is launched, the button would be accessible. If a particular button is flagged as being ID Specific, no other hooks can be assigned to the button from any other calling program/switch. Note: This option overrides the All Switches option.

Clear. Click this button to delete the information in the selected Button row.

Click Save when finished entering information.

View All tab

This tab will list all hooks associated with the Browser ID. In the example below, all of the instances of a button added to the Customer browser is displayed.

Click the Purge button to remove all button/hooks from the Browser ID.

Example

This example demonstrates the browser hook button in action.

A user wants the ability to create a customer on the fly, and needs to be able to do so when entering a new sales order. A custom GAB script was created to accomplish this task and was set up as a user hook in System Support > Administration > GAB Script Hook Maintenance. Go to Order Entry > File > Sales Orders > New. Once the Customer browser appears, click the Browser Hooks button.

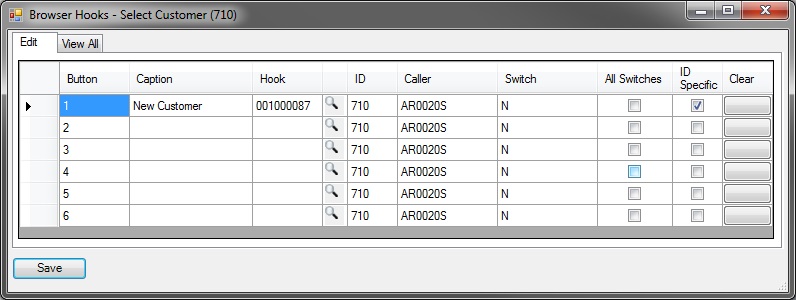

A caption of New Customer is entered. The user-created Hook ID tied to the custom script is selected in the Hook browser. The new customer should be able to be created any time the customer browser is accessed so the ID Specific flag is checked. Click Save. Exit out of the Browser Hooks screen. Exit out of the Customer browser. The next time the Customer browser is launched, the following button will be available just below the Query Filter section:

Click the New Customer button to launch Accounts Receivable > File > Customers > New:

Enter the Customer information as needed and click Save and exit the screen. The browser will close, and the new customer entered will be populated on the sales order header screen.

Note: This is just one example of the many different ways the browser hook buttons can be utilized. Contact GSS for more information and/or if a custom GAB script is needed.

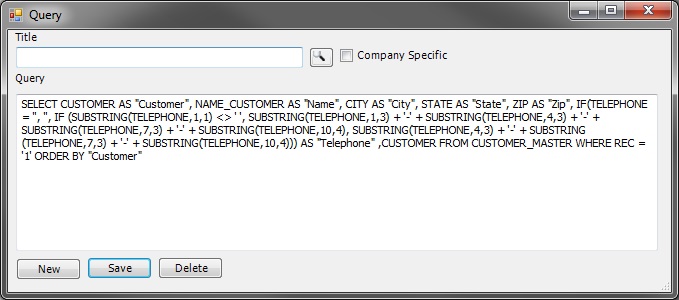

This screen allows the user to create, save, or delete a SQL search string. The query can be limited to a specific company by checking the Company Specific check box or can include any company codes the user is allowed to access.  The Query entry area is pre-populated with the key column names required for the Pervasive table referenced by the browser until a query is saved.  Column names can be added or removed; however, removing the key fields may cause errors.  More than one table may be referenced in the SQL statement for use in a browser. Click New to create a new search query.  Click Save to save the current search query. Highlight a previously saved query in the Title field browser then click Delete to remove a query.

Example

Select ID, PROGRAM, SCREEN, SCRIPT_DESC, MENU_REF FROM HOOK_GLOBAL ORDER BY PROGRAM

Note:  "Select *" is not supported.

Include

 Include results containing 22 in column Report ID

This expression will show all reports that have a 22 somewhere in the Report ID.

Exclude

 Exclude results containing 22 in column Report ID

This expression will not show any reports that have a 22 somewhere in the Report ID.

*CONTAINS

 See below for explanation.

This expression yields results where the value 22 is found embedded in the field contents.

**LIKE

 See below for explanation.

<

 Less Than

<=

 Less Than or Equal To

>

 Greater Than

>=

 Greater Than or Equal To

=

 Equal To

<>

 Not Equal To
